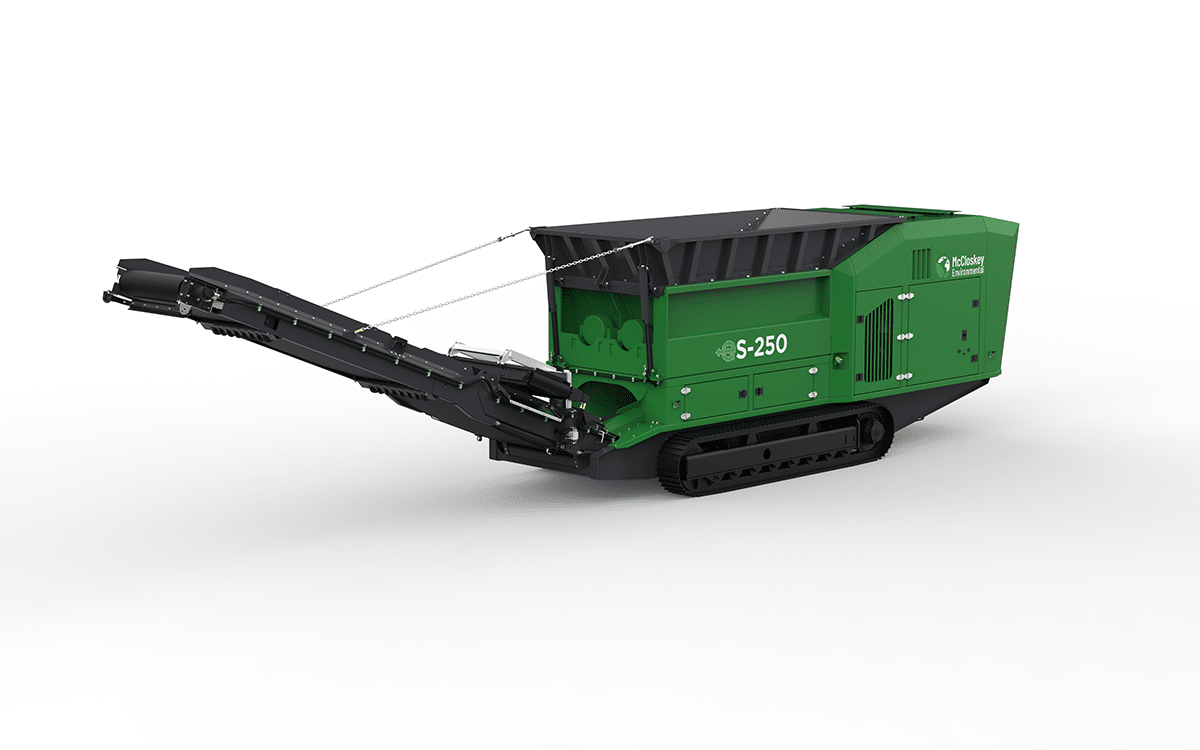

ES-250 Dual Shaft Shredder

The ES-250 is a tracked primary shredder capable of effectively and reliably shredding virtually any type of material. Designed to meet the needs of plants in which the incoming materials vary greatly in terms of size, composition, and difficulty to shred.

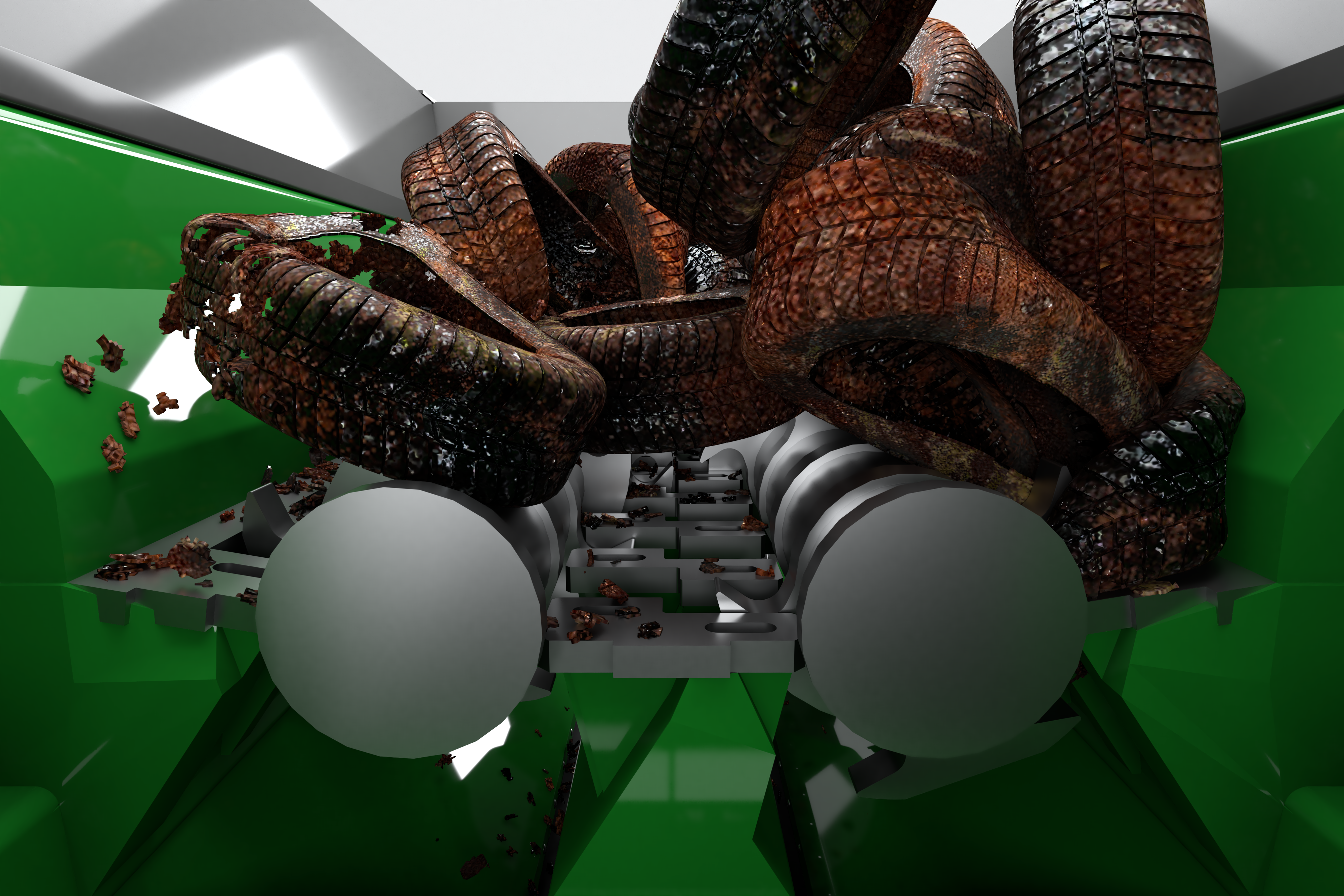

The interaction between the rotating knives on the dual shafts running asynchronously in both directions ensures the input material is constantly moving to prevent bridging and maximising shredding efficiency.

Key Features

Aggressive 8 Knife, heavy duty cutting table
Danfoss electrical control unit
Variable speed main conveyor
4 Meter tracks for superior manoeuvrability and stability
Volvo C15 403 KW (540HP) Stage V/Tier 4 Final
Fuel efficient hydraulics system
User friendly hydraulic controls
Double hydrostatic drive transmission

Dimensions

Length – Working – 15.1M (49’-7”)
Height – Working – 3.5M (11’-6”)
Length – Transport – 9.54M (31’-4”)
Width – Transport – 3.01M (9’-11”)
Height – Transport – 3.50M (11’-6”)
Maximum Production Rate – 100TPH (110 USTPH) (Material Dependent)
Average Fuel Consumption – 60 L/HOUR (15.5 US GAL)
Machine Weight – 35,000KG (77,160 LBS.)

Cutting Table

Number of shafts: 2
Rotating Speed: 16-41/27-56 RPM
Number of Knives: 8/10
Number of Counter Knives: 16/20
Cutting Area: 1690MM X 2480MM (95” X 79”)
Knife Type: SHEER TABLE
Chamber Weight: 14,900KG (32,850 LBS.)
