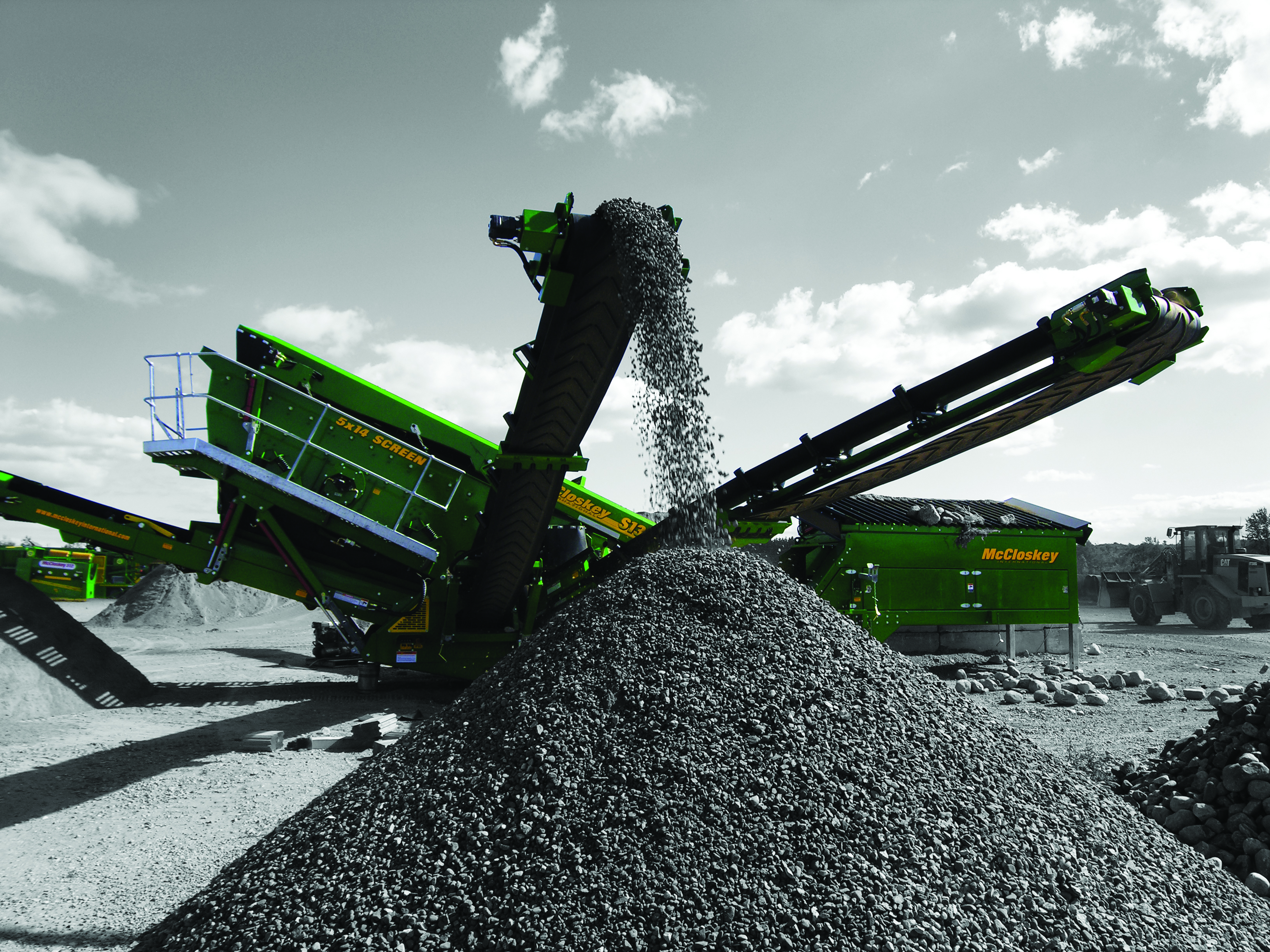

The McCloskey S130 High Energy Screener is used across a wide range of applications, including aggregate, coal, crusher circuits and wood chips. The S130 screener is renowned for its fine sand screening and is impressing customers worldwide with its production capacities. With the S130, you get class-leading S-Range features like the aggressive High Energy Screenbox and user-friendly operation. The S130’s unique size is designed to meet demands of operators who require significantly more screening capacity than a 10′ or 11′ screenbox, but may not require the higher capacity of a 20′ plant. The S130 screener is also available as a Triple Deck and boasts an array of features and benefits which elevate the models above all the competitors in its class. The S130 TD has comparable production capacity to its competitor’s larger models at a far more cost effective price.

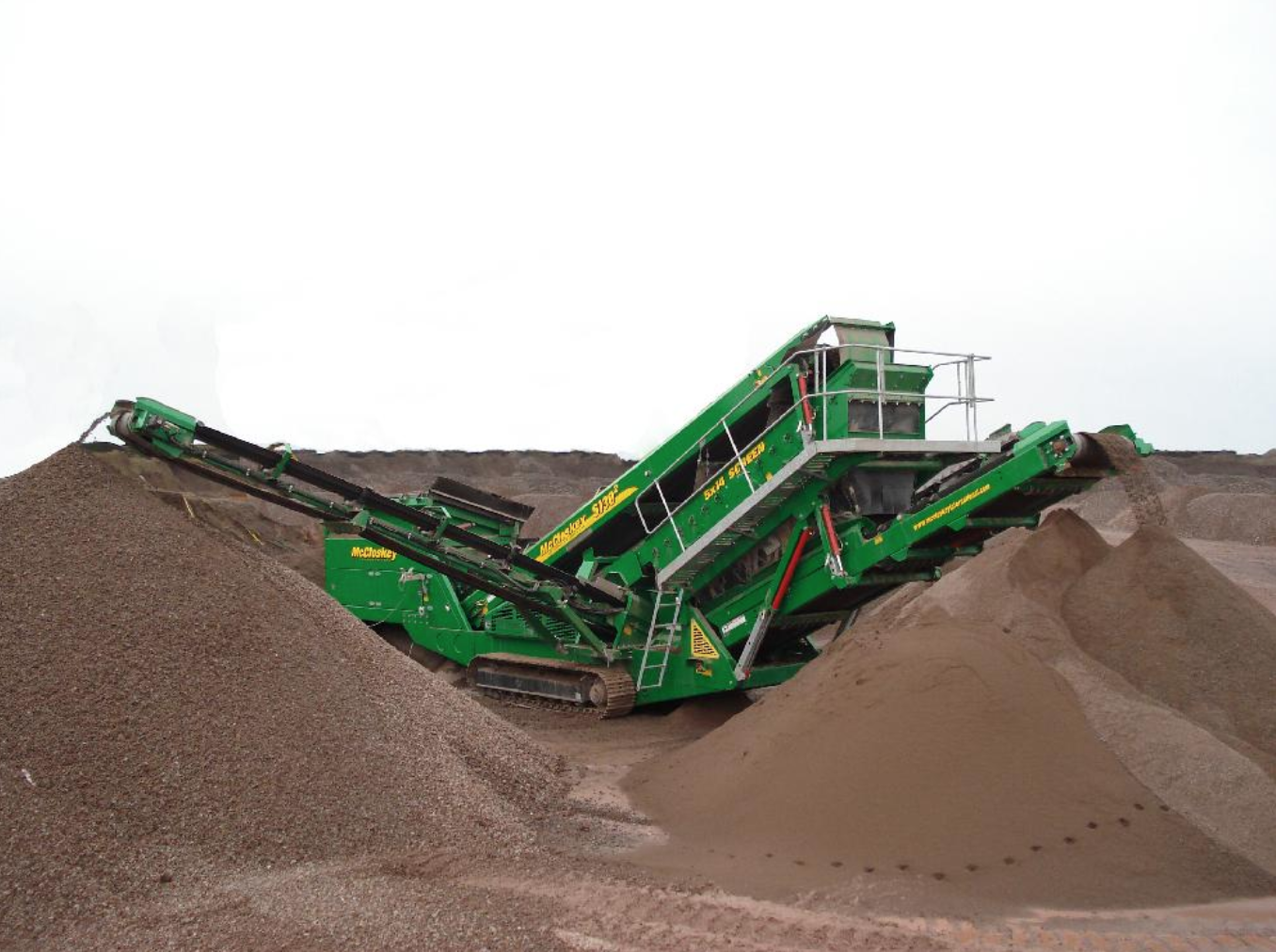

S130 Screener
Specification
| Double Deck | ||
| Engine | 130 HP (97 kW) | |
| Screenbox Top Deck | 4270mm (14′) x 1524mm (5′) | |
| Screenbox Bottom Deck | 3660mm (12′) x 1524mm (5′) | |
| Main Conveyor Belt Width | 1050mm (42″) | |
| Stockpile Height Tail Conveyor | 3871mm (12′ – 8″) – Track Model | 4139mm (13′-7″)- Wheel Model |
| Stockpile Height Side Conveyor | 4600mm (15′-1″) – Track Model | 4870mm (15′ – 11″) – Wheel Model |
