S250 Screener

Specification

S250
Engine 280 Hp (209 kW)
Transport Height 3.6m (11’ 10”)
Transport Length 19.55m (64’ 1.5”) 15’ Hopper/18.63m (61’ 1.5”) 12’ Hoppe
Transport Width 3.66m (12’)
Weight 42,430 kg (93,541 lbs)
Stockpile Height – Tail Conveyor 4992mm (16’ – 4.5”)
Stockpile Height – Side Conveyor 5398mm (17’ – 8.5”)
Screenbox Dimensions 6710mm x 1830mm (22’ x 6’)
Enquire now
Full Specifications
Category: Screeners
  • More information

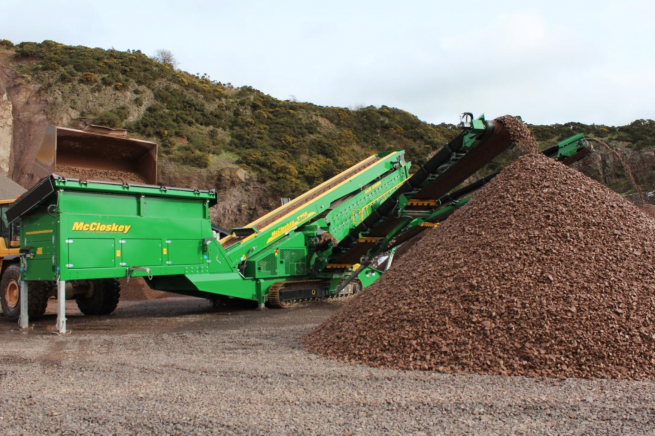

The new McCloskey S250 Screener rises above all industry standards, positioned as one of  the world’s largest track mobile screeners. The 22 x 6 heavy duty high energy 2 bearing 3 deck screeners deliver more true screening area. Engine options, including Cat and Volvo, deliver the required power for maximising throughput.
Available in double or triple deck models, the S250 features 900mm (36”) wide side conveyors and an 800mm (32”) wide oversize conveyor for higher material flow. The oversize conveyor also features an open roller design, reducing power requirements.
This class leading screening area, along with its high energy screening action, ensure that the McCloskey S250 is the superior choice for aggregate material screening.
