Feeder Stackers

Specification

TF80 ST80TF ST100TF (Radial)
Engine 100hp (75kw) 100hp (75kw) 100hp (75kw)
Production 750 TPH (680 MTPH) 800 TPH (725 MTPH) 800 TPH (725 MTPH)
Stockpile Height 42′ 6″ (12.94m) 31′ 1″ (9.47m) 41′ 10″ (12.77m)
Stockpile Capacity 5,280 cu. yds.(4,037 cu.m.) 1,556 cu. yds. (2,035 cu.m.) 4927 cu. yds. (3,766.cu.m.)
Conveyor Length 19.35m (80′) 24.38m (80′) drum centre 30.48m (100′) drum centre
Belt 48″ x 80′ (1220mm x 24.38m) 36″ x 80′ (900mm x 24.38m) 36″ x 100′ (900mm x 30.48m)
Enquire now
Category: Stackers
  • More information
ST80TF/ST100TF TRACKED FEEDER STACKERS
McCloskey International’s heavy duty high capacity feeder stackers, the ST80TF and the  ST100TF, are designed to deliver enhanced handling and stockpiling of a wide range of materials across industries including aggregates, composting, landscaping and mining.
A tracked feeder stacker is an excellent alternative when a traditional direct load stacker may not be the right match for the material, and offers an economical yet highly productive option to the larger TF80.
With its large capacity hopper (5.75 cu.m. or 7.5 cu. yd.) with adjustable height, and high stockpile capacities, the ST80TF and ST100TF ensure optimised production and efficiency on the job. The design reflects feedback from customers in a cross-section of applications and industries, and McCloskey International’s commitment to deliver the best products based on that input.

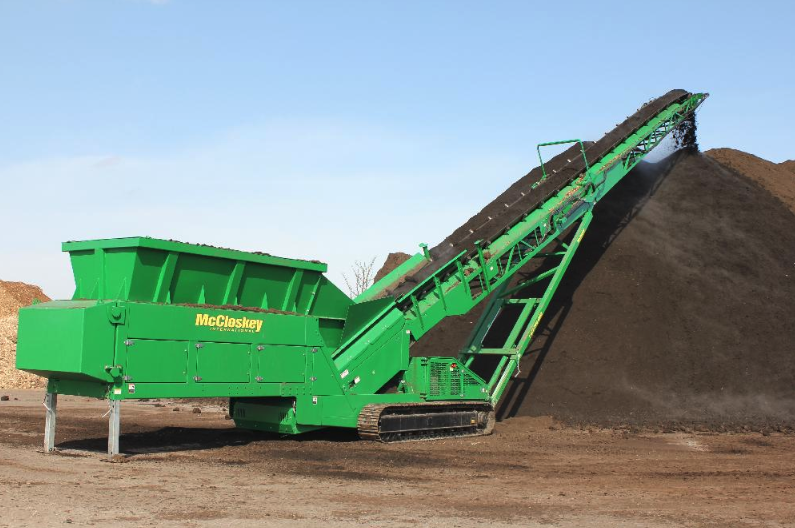

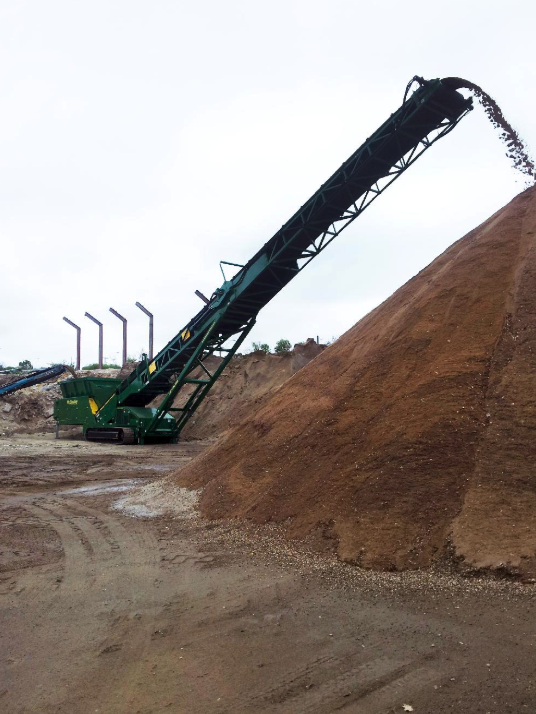

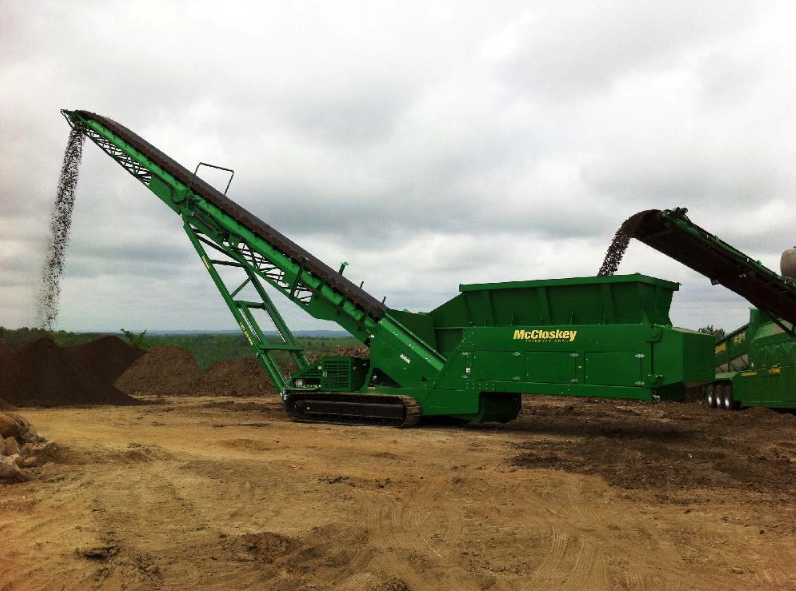

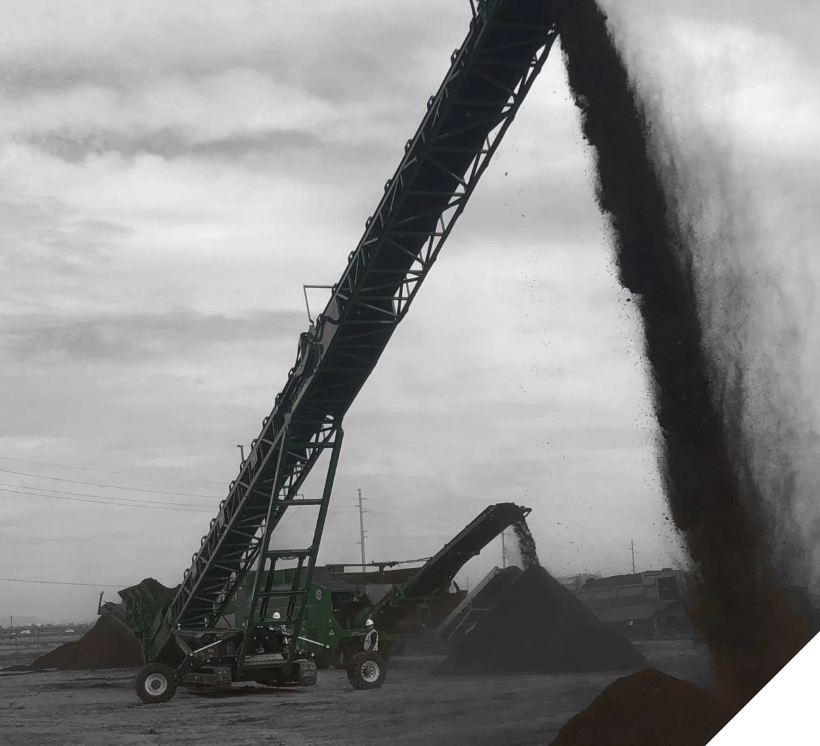

TF80/WF80 FEEDER STACKERS
McCloskey Feeder Stackers facilitate the handling and stockpiling of large wood waste, bark, compost and topsoil, all of which can be fed into the hopper with large loaders and excavators.
In addition to enhanced mobility, a large feeder hopper, wide heavy duty 19.35m (80′) long conveyor, and a heavy duty feeder make the TF80 and the WF80 robust stockpiling conveyors across applications.
Tracked and wheeled feeders are available with a number of options to meet each customer’s unique material requirements.
