SDX Telescopic Stackers

Specification

 SDX100 SDX130 SDX150
Engine – Power Unit 100 Hp (75 kW) 127 Hp (96 kW) 127 Hp (96 kW)
Stockpile Height (max) 42′-5′ (12.93m) 50′-5″ (15.37m) 55′ (16.76m)
Working Length (max) 100′ (30.48m) 130′ (39.61m) 150′ (45.72m)
Transport Length  57’ 3” (17.45m) 75′ 4″ (22.97m) 84′-5″ (25.73m)
Transport Height 13’ 6” (4.12m) 13′ 6″ (4.12m) 13′ 6″ (4.12m)
Belt Width 36″ (900mm) 36″ (900mm) 36″ (914mm)
Enquire now
Category: Stackers
  • More information

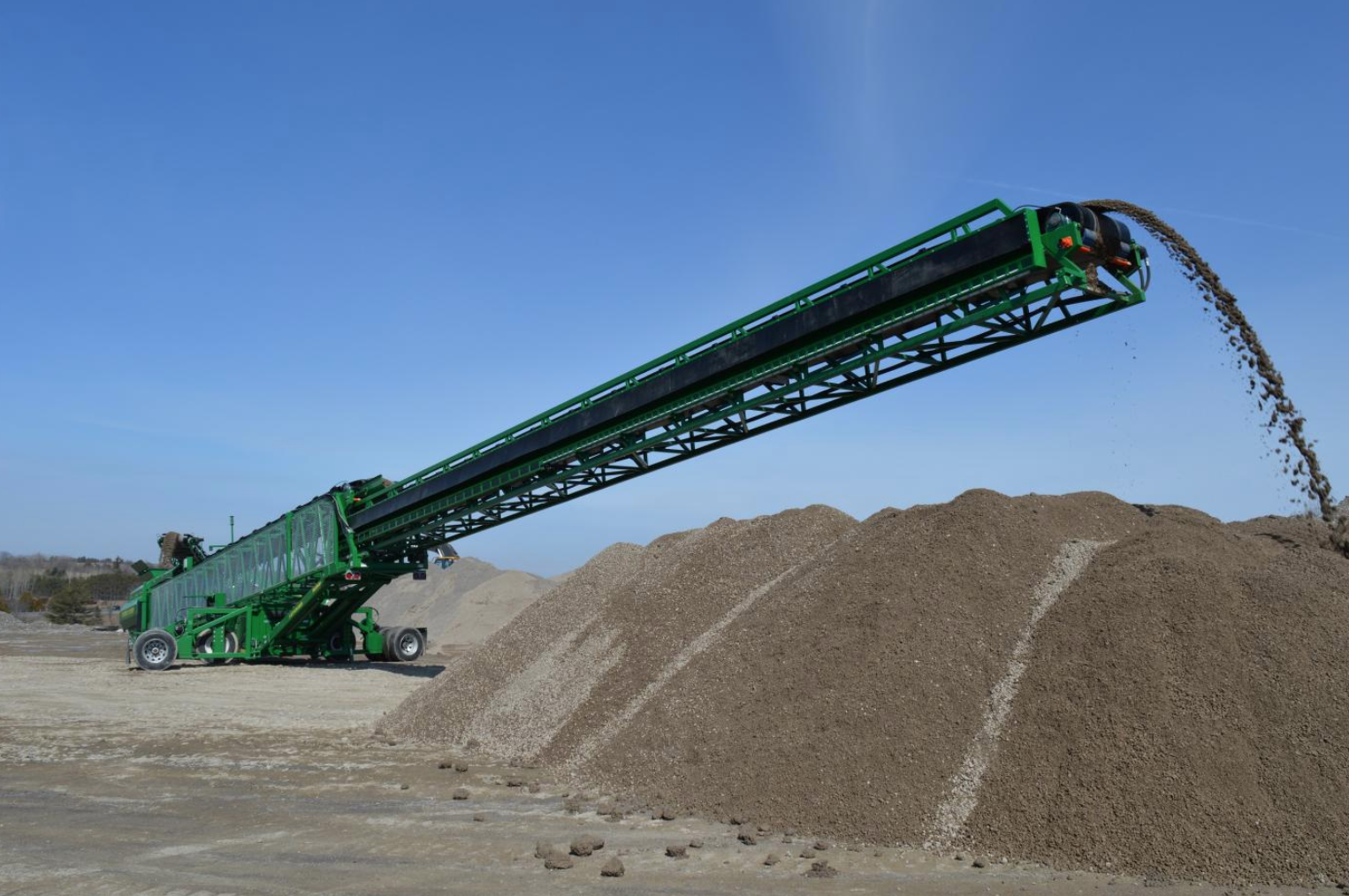

The SDX Series Telescoping Stackers are the first in a new line of self-contained desegregating conveyors to enhance and streamline materials handling. The SDX Series Stackers maximize stockpile capacity using a robust, fully automated and highly flexible control system providing optimal control of material quality. With its onboard diesel hydraulic unit, the SDX Stackers are highly portable, complementing mobile screeners and crushers on site. The on-board power proves cost effective for customers, removing the need to transport and setup a separate genset or arrange supply of main power on-site. Setup from delivery to operation can be accomplished in 15 minutes. The design reflects feedback from customers in a cross-section of material handling applications and industries.

New to the options for the TELESCOPING STACKER LINE is a LIFT AXLE, which allows the conveyor to switch from track mode to radial mode in seconds. Mounted in front of the track bogie, the lift axle comes with internal wheel drive motors for radial travel. The tires feature aggressive-tread patterns for more traction in tough terrain. The lift axle is available on heavy-duty stacking conveyors, SDX telescopic stackers and tracked stackers.
