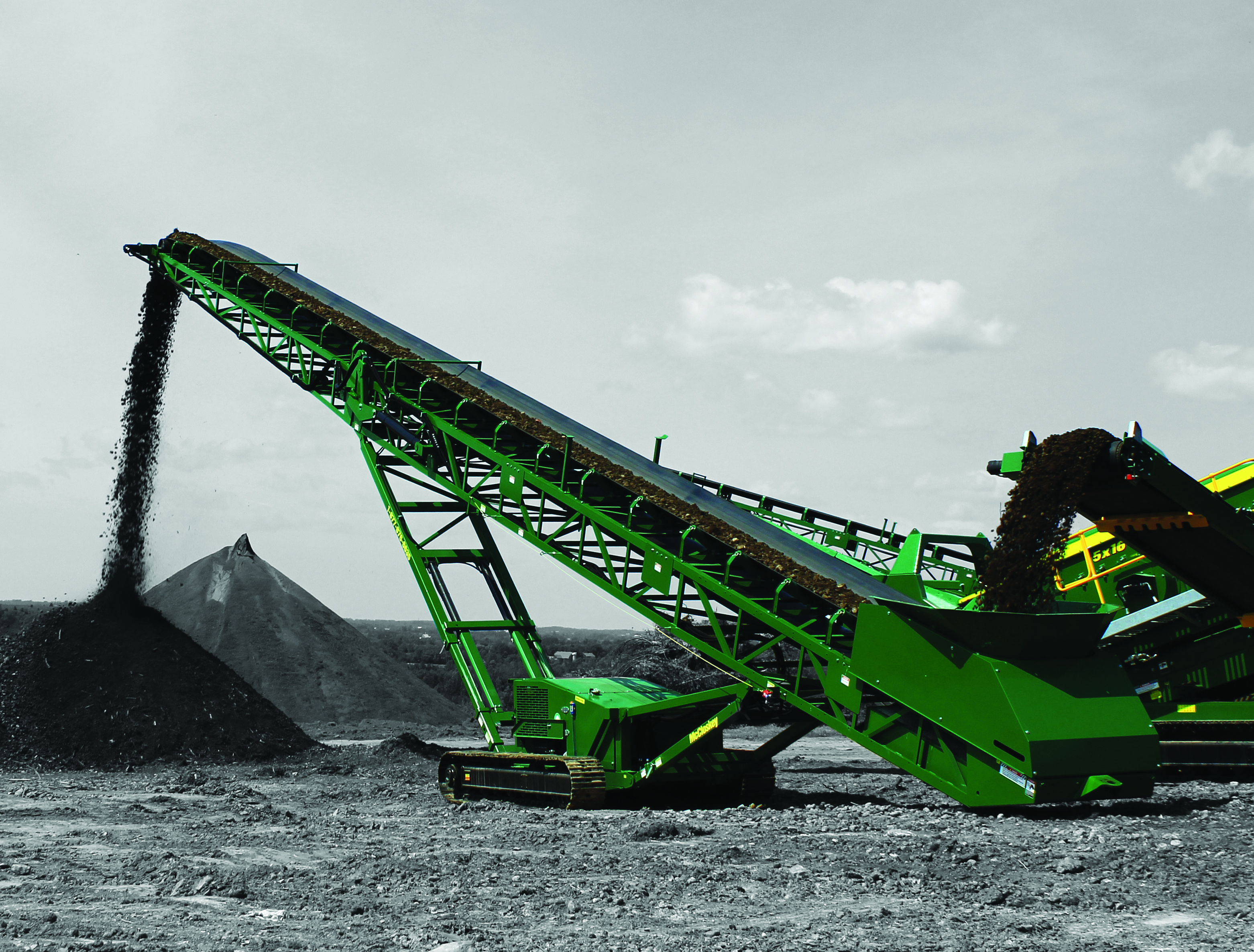

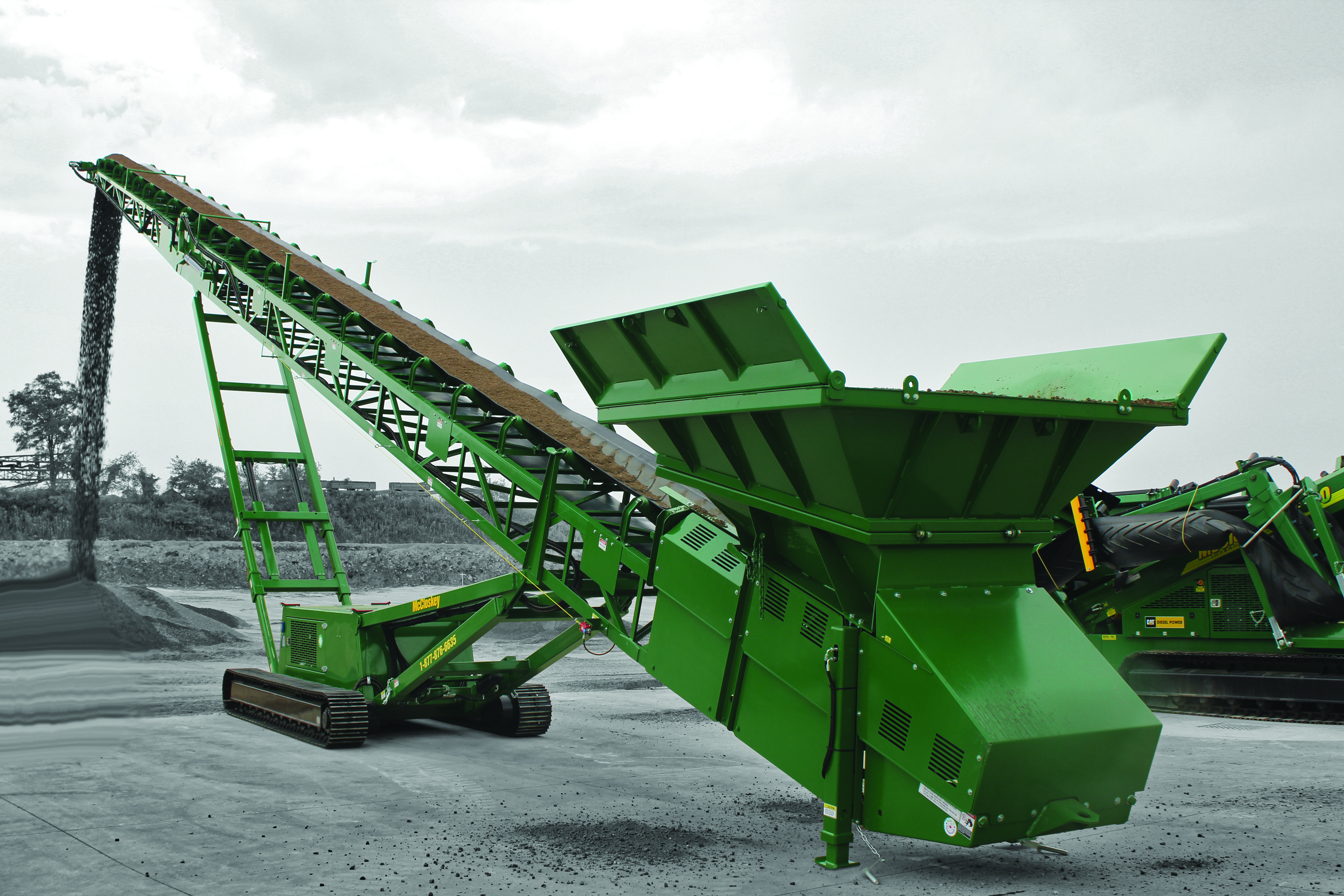

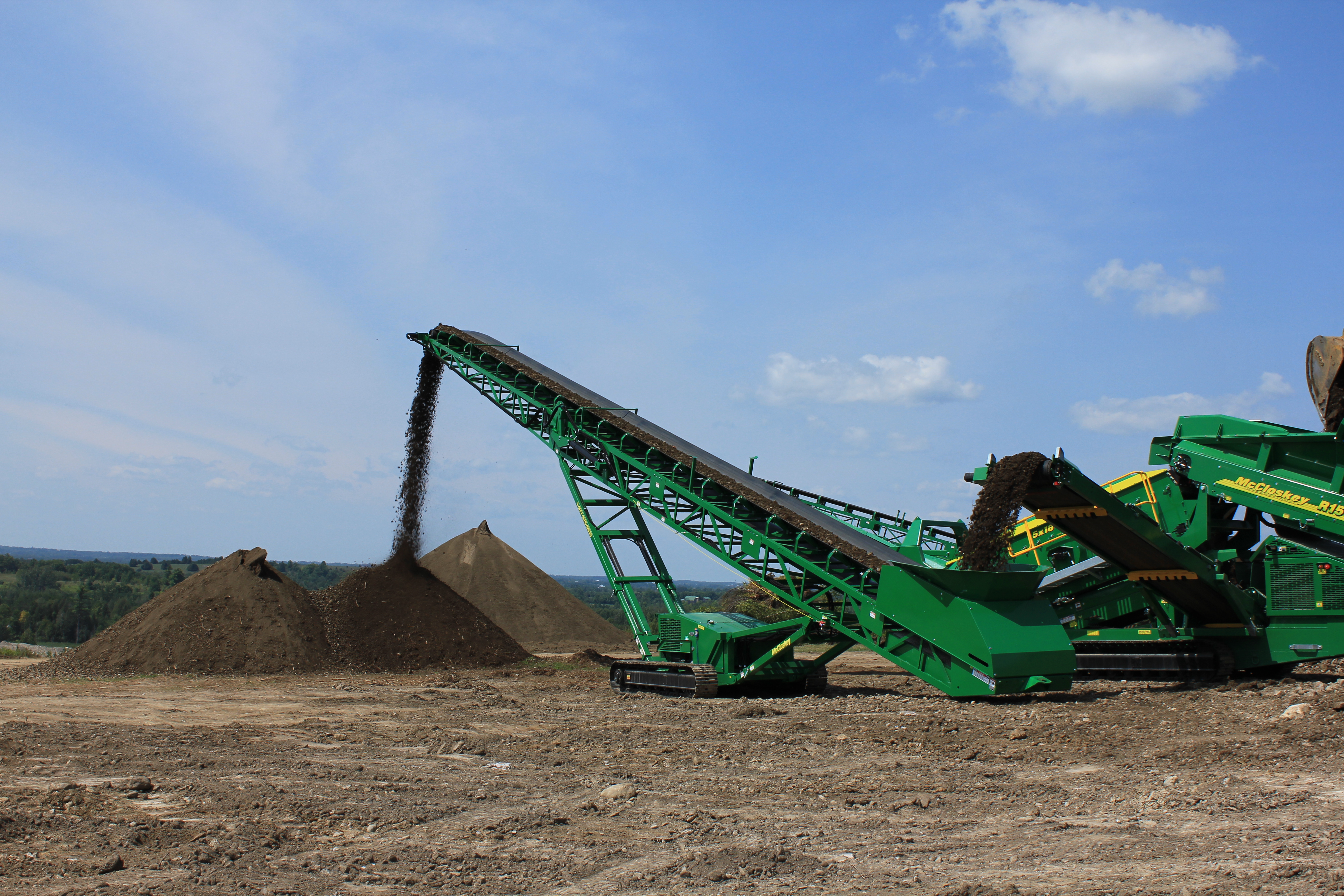

ST Tracked Stackers

Specification

ST80T ST100T
Engine 49 Hp (36.5 kW) 74 Hp (55 kW)
Belt Length 80′ (24.38m) 100′ (30.48m)
Belt Width 36″ (900mm) 36″ (900mm)
Stockpile Height 32′ 10″ (10m) 41’ 3” (12.5m)
Stockpile Capacity 2035 yds³ (1556 m³) 5030 yds³ (3850 m³)
Production 500 – 800 TPH 500 – 800 TPH
Enquire now
Full Specifications
Category: Stackers
  • More information

The McCloskey ST TRACKED Stackers are all about efficiency, from its speedy setup time to its high degree of mobility, downtime is minimized while throughput and stockpile capacity are maximized. Hydraulic main lift and top fold are standard, as is the diesel power unit. Electric and dual power are also available to get the job done, no matter what application. The 22.5 degree maximum conveyor angle allows for the highest stockpiles per conveyor length in the industry. With its durable truss frame, large feed hopper and base production capacity of 500 TPH with optional upgrades to 800 TPH, the McCloskey ST TRACKED Stackers stand up well above the competition.

New to the options for the ST100T stacker is a LIFT AXLE, which allows the conveyor to switch from track mode to radial mode in seconds. Mounted in front of the track bogie, the lift axle comes with internal wheel drive motors for radial travel. The tires feature aggressive-tread patterns for more traction in tough terrain. The lift axle is available on heavy-duty stacking conveyors, SDX Telescopic Conveyors and tracked stackers.

Please note the Lift Axle option is currently not available in UK & Ireland.
