The McCloskey Wheeled Stackers have been designed for high capacity stockpiling operations. All units come standard with diesel power units, hydraulic main lift and hydraulic top fold. Electric and dual power are both available as options based on the best application for the customer’s business. The ST Stacker Line is also available as a radio controlled track mounted unit. This heavy duty mobile stacker has a setback axle and 22.5 degree max conveyor angle allowing for the highest stockpiles per conveyor length in the industry. With its durable truss frame, large feed hopper and base production capacity of 500 TPH with optional upgrades to 800 TPH, the McCloskey ST Stackers stand up well above the competition.

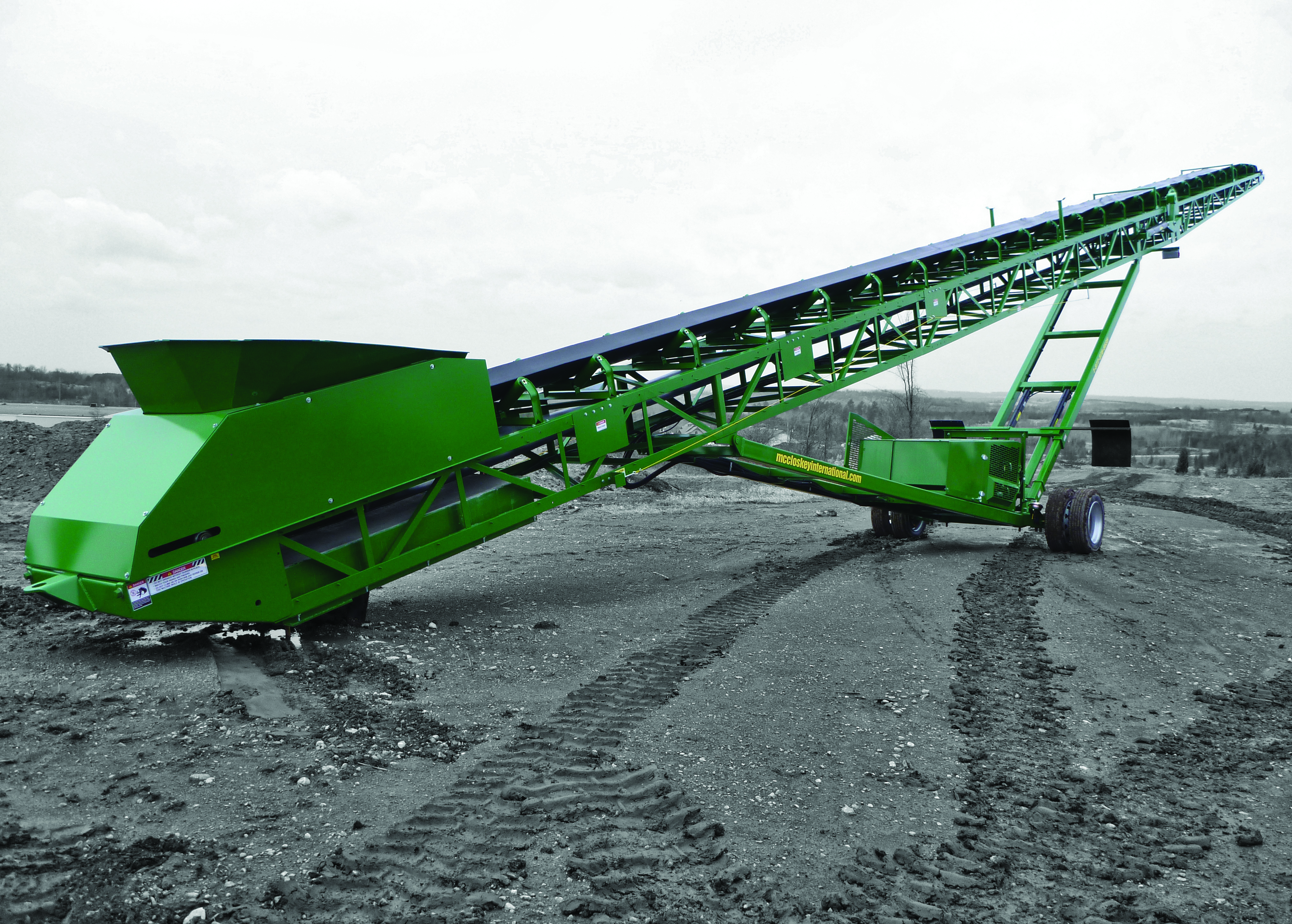

ST Wheeled Stackers
Specification
| ST100 | ST80 | ||
| Engine | 90 Hp (67 kW) | 49 Hp (36.5 kW) | |
| Belt Length | 100′ (30.48m) | 80′ (24.38m) | |
| Belt Width | 36″ (900mm) | 36″ (900mm) | |
| Stockpile Height | 41′ 3″ (12.5m) | 31′ 1″ (9.47m) | |
| Stockpile Capacity | 5030 yds³ (3850m³) | 2035 yds³ (1556m³) | |
| Production | 500 US TPH, V-Bin: 800 US TPH | 500 US TPH, V-Bin: 800 US TPH |
