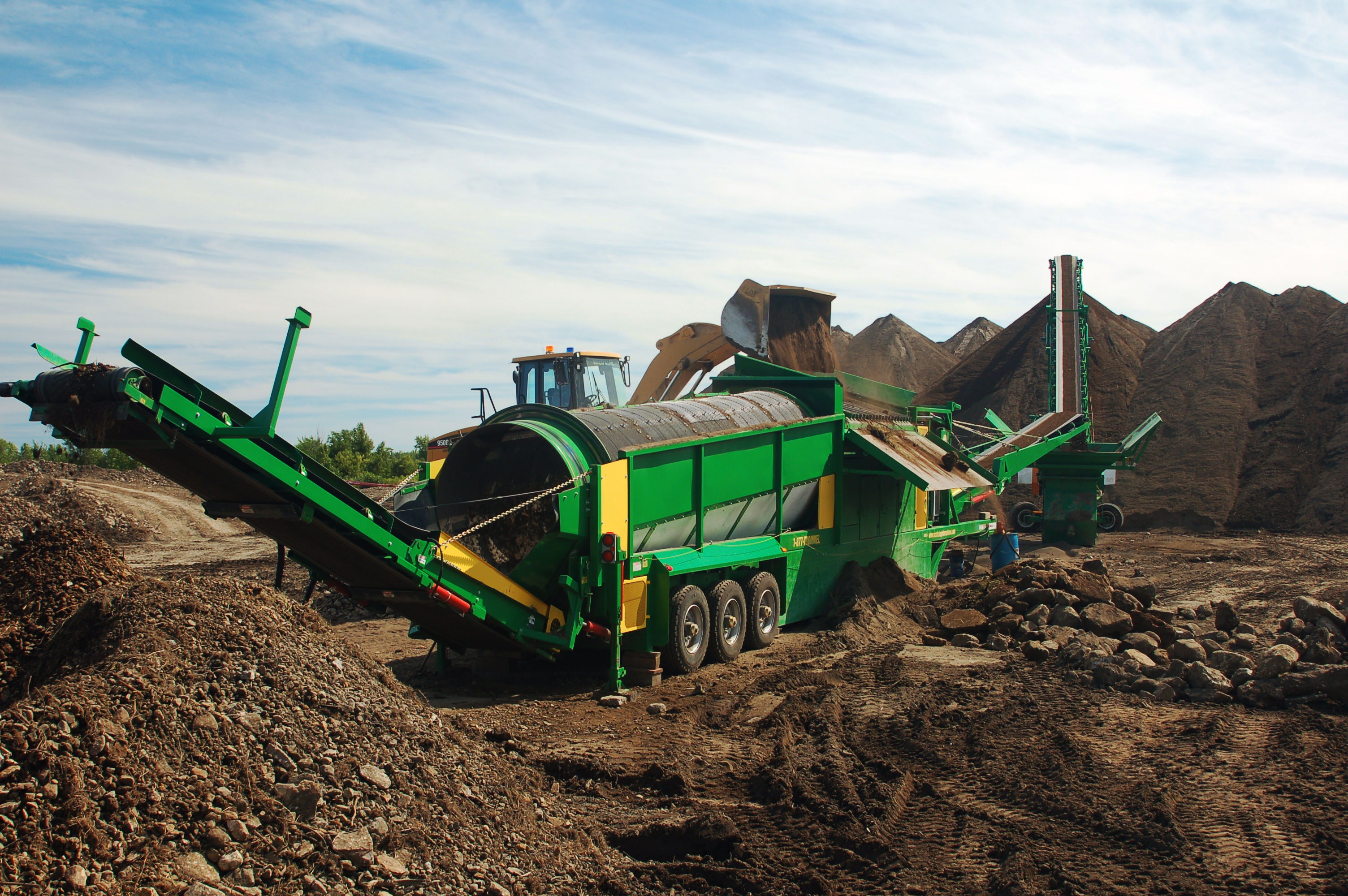

The McCloskey 628 Trommel Screener is suited for large heavy-duty applications. With a 6’ diameter screen, the 628 Trommel generates a powerful screening action while the 28’ long drum ensures longer time on the screen and the highest quality end product. McCloskey International is the world’s leading trommel manufacturer in pioneering trommel design and innovation. All McCloskey trommels undergo extensive field testing and are continuously improved through customer feedback. Available as a wheeled mobile unit or hydraulic raise/lower track bogie system and McCloskey provides numerous custom drum and feeder options that are offered to meet each customer’s unique requirements.
628 RE Trommel
Specification
Engine | 174 HP (130kW) Diesel |
Drum Size | 1.83m (6′) x 8.53m (28′) |
Screening Area | 34.5m² (370ft²) |
Hopper Capacity | 5 m³ (6.5 yd³) |
Fine Conveyor Belt Width | 1050mm (42″) |
Radial Stockpile Height | 5.13m (16′-10″) |
Radial Conveyor Belt Width | 1050mm (42″) |
